CA18FLF08PA

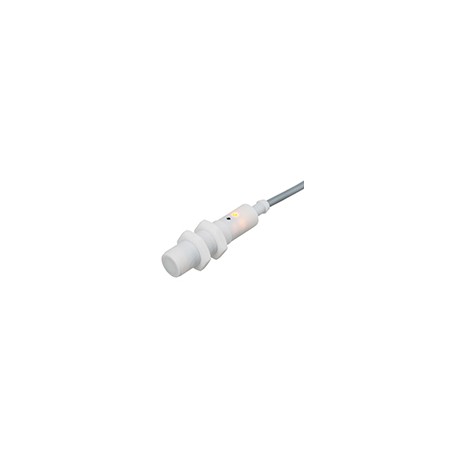

Proximity Sensors CapacitiveTeflon HousingType CA, M18, DC• Featuring TRIPLESHIELD™ sensor protection• Adjustable sensing distance 3-8 mm• Rated operational voltage: 10-40 VDC• Output: DC 200 mA, NPN or PNP• Make and break switching function• LED indication• High noise immunity• Flush types• Cable versionsProduct DescriptionOrdering Key CA 18 FLF 08 NACapacitive proximity switches with sensing distance of 8 mm flush mounted in metal. 4-wire DC output with both make (NO) and break (NC) switching.White M18 Teflon housing with 2 m cable. Ideal for use in level applications in the chemical, semi-conductor and food & beverage industries.TypeHousing style Housing size Housing material Housing length Detection principle Sensing distance Output typeOutput configurationType SelectionHousingRatedMountingOrdering no.Ordering no. diameteroperating Transistor NPN Transistor PNPdist. (Sn) 1) Make & break switchingMake & break switchingM18 8 mm Flush (built-in)CA18FLF08NACA18FLF08PA1) Object: Grounded steel plateSpecificationsRated operating dist. (Sn)3 to 8 mmfactory set at 8 mmSensitivityAdj. 270° turn pot. meter Effective operation dist. (Sr)0.9 x Sn £ Sr £ 1.1 x Sn Usable operation dist. (Su) 0.8 x Sr £ Sn £ 1.2 x Sr Repeat accuracy (R) £ 5%Hysteresis (H)4 to 20% of sensing distanceRated operational volt. (UB)10 to 40 VDC (ripple included)Ripple £ 10%Rated operational current (Ie)Continuous £ 200 mANo-load supply current (Io) £ 10 mAVoltage drop (Ud)£ 2.5 VDC at max. loadProtectionReverse polarity,short-circuit, transientsIndication for output ONLED, yellowEnvironmentDegree of protection IP 67 (Nema 1, 3, 4, 6, 13)TemperatureOperating temperature -25° to +80°C ( -13° to +140°F) Storage temperature-40° to +85°C (-40° to +149°F)Housing materialBody, front, nutsTeflonConnectionCableGrey, 2 m, 4 x 0.34 mm2Oil proof PVCWeight110 gCE-marking YesFrequency of operatingcycles (f)30 HzSpecifications are subject to change without notice (03.01.03)1
