En stock Producto destacado
EKD16124

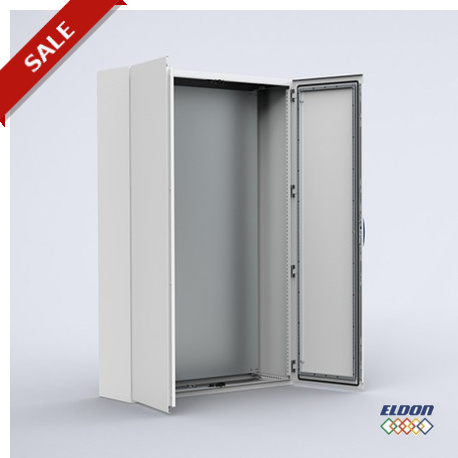

EKD16124 ELDON Floor standing, 1600x1200x400
$0.00USD
3501 en stock
Especificaciones clave
Nota:With mounting plate
Cuerpo::One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.
Profundidad:400 mm
Puerta::Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.
Información del proveedor
ELDON
Productos: 4827
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Nota | With mounting plate |
| Cuerpo: | One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth. |
| Profundidad | 400 mm |
| Puerta: | Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed. |
| Cerrar con llave: | External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle. |
| Ancho | 1200 mm |
| Altura | 1600 mm |
| Peso | 135,7 Kg |
| Finalizar: | RAL 7035 structured powder coating. |
| Entrega: | One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable. |
| Toma de tierra: | Can be accomplished by using ECF (Earthing connections for frame). |
| Material: | Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel. |
| Protección: | Complies with IP 55 TYPE 12, 13 IK 10. |
| Placas inferiores: | Consists of two sets of two pieces or three (D>300) pieces. |
| Características | |
| Placa de montaje: | Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates. |
| Ancho de la placa de montaje | 1094 mm |
| Altura de la placa de montaje | 1494 mm |
| Profundidad útil máxima del recinto | 355 |
| Profundidad útil máxima del armario (mm) | 355 |
Descripción del producto
More details
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
Detalles técnicos
As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.
