HC-M-02-MOD-BU

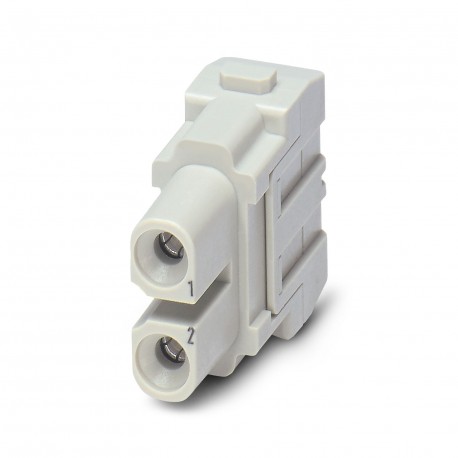

HC-M-02-MOD-BU 1679359 PHOENIX CONTACT HEAVYCON contact insert module, female, 2-pos., axial screw connection
$0.00USD
4412 en stock
Especificaciones clave
:Note regarding axial connection technology:Only for stranded wires. The conductor cross sections stated refer to the geometric cross section of the cable used.Use of cables with a geometric cross section very different from that of the cable's nominal cross section should be checked before use.The wiring space of the axial screw method is designed for fine strand cables according to VDE 0295 class 5. Deviating cable structures (e.g. class 6 cables) should be checked before use.ConnectionBefore starting to connect, ensure that the tapered screw is turned back all the way (chamber is open). The cables must not be twisted. The cores should be slid to the limit stop in the contact chamber (until insulation touches contact). Hold cores in position and use socket wrench to tighten. The used core end should be cut off before connecting again. The connection screw may only be retightened once to prevent the strands from breaking. To prevent damage to the contact, the core / cable should be mechanically intercepted at an appropriate distance from the connection point (e.g. by using a plate cutout). DIN VDE 0100-520:2003-06 contains information on how to do this correctly.
Ancho:34.2 mm
Altura:40.6 mm
Longitud:14.6 mm
Información del proveedor
Productos: 0
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Note regarding axial connection technology:Only for stranded wires. The conductor cross sections stated refer to the geometric cross section of the cable used.Use of cables with a geometric cross section very different from that of the cable's nominal cross section should be checked before use.The wiring space of the axial screw method is designed for fine strand cables according to VDE 0295 class 5. Deviating cable structures (e.g. class 6 cables) should be checked before use.ConnectionBefore starting to connect, ensure that the tapered screw is turned back all the way (chamber is open). The cables must not be twisted. The cores should be slid to the limit stop in the contact chamber (until insulation touches contact). Hold cores in position and use socket wrench to tighten. The used core end should be cut off before connecting again. The connection screw may only be retightened once to prevent the strands from breaking. To prevent damage to the contact, the core / cable should be mechanically intercepted at an appropriate distance from the connection point (e.g. by using a plate cutout). DIN VDE 0100-520:2003-06 contains information on how to do this correctly. | |
| Ancho | 34.2 mm |
| Altura | 40.6 mm |
| Longitud | 14.6 mm |
| Serie | HC-M-02 |
| General | For HEAVYCON housing type B6 to B48, HC-M-MHR... hinged retaining frame required |
| Solicitud | Power |
| Tipo de producto | Modular contact insert |
| Nota de montaje | - Connection of the wires using a 2 mm Allen wrench.- Housing height ≥ 52 mm.- Axial screw connection only for flexible wires.- Plug-in connections may only be operated only when there is no load/voltage. |
| Corriente nominal | 40 A |
| Material de contacto | Copper alloy |
| Enchufe hexagonal | SW 2 |
| Numeración de contactos | 1 - 2 |
| Par de apriete | 1.5 Nm (2.5 mm² ... 4 mm²) |
| Perfil de conexión | 2 |
| Grado de contaminación | 3 |
| Dibujo dimensional | |
| Número de puestos | 2 |
| Tensión de sobretensión nominal | 8 kV |
| Categoría de sobretensión | III |
| Tecnología de conexión | Axial screw connection |
| Tensión nominal (III/3) | 1000 V |
| Número de ranuras para módulos | 1 |
| Sección transversal del conductor | 2.5 mm² ... 8 mm² (The cross section specification refers to the geometric cross section of the cable used) |
| Material portador de contactos | PC |
| Material de la superficie de contacto | Ag |
| Ciclos de inserción/retiro | ≥ 500 |
| Sección transversal de conexión AWG | 12 ... 10 |
| Temperatura ambiente (funcionamiento) | -40 °C ... 125 °C |
| Conexión según norma | IEC / EN |
| Clasificación de inflamabilidad según UL 94 | V0 |
| Longitud de pelado del cable individual | 8 mm +1 mm (for 6 mm²) |
