HLP-60H-54

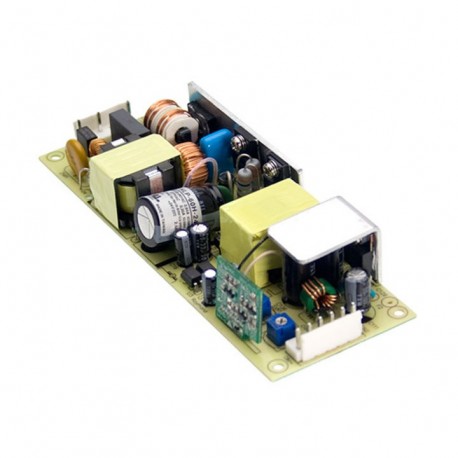

HLP-60H-54 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 54VDC / 1.15A, open frame, Dimmi..
$0.00USD
4085 en stock
Especificaciones clave
Nombre:HLP-60H-54
Estado:Recommended Model
Formato:Open Format
Serie:HLP-60H
Información del proveedor
MEANWELL
Productos: 6448
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Nombre | HLP-60H-54 |
| Estado | Recommended Model |
| Formato | Open Format |
| Serie | HLP-60H |
| Atenuación | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Aprobaciones | CCC, CE, UL |
| Potencia (W) | 62,10 |
| Ancho (mm) | 53.00 |
| Altura (mm) | 27.00 |
| Entrada de CA Máx. | 305,00 |
| Entrada de CA mínima | 90,00 |
| Aplicaciones | Lighting |
| Fabricante | MEAN WELL |
| Tipo de producto | LED Driver |
| Aislamiento (V) | 3.750,00 |
| Potencia máxima (W) | 62.1 |
| Conector de entrada | Plug-in |
| Frecuencia de entrada | 50 Hz, 60 Hz |
| Largo/Fondo | 147.00 |
| Descripción larga | LED driver.Specially designed to feed LED strips.Open format typePCBS.Input range90-305Vca47-63Hz.Output in constant current1150mA.Adjustable by external potentiometer (690-1150mA).Range of output voltage with current mode constant32,4 to 54Vccaccording to demand load.The output voltage in voltage mode constant54Vcc. Adjustable by external potentiometer (49-58Vcc).Power:62,1 W.Efficiency typical:Total of 90.5%.Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class I with grounding.Factor corrector, power>0,95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):147 x 53 x 27mm.3 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output voltage and the output current can be adjusted byexternal potentiometerslocated in the plate of the source, in addition to having regulation 0-10V/1-10V, 10V PWM, or resistance.With format, open PCB type. The series HLP is intended for applications of LED lighting. Suitable for dry environments and interior. Burn test at 100% load.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Conector de salida | Plug-in |
| Tipo de entrada CA | Single-phase |
| Garantía (años) | 3,00 |
| País natal | China |
| Corriente de salida mA | 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150 |
| Intensidad de salida mínima (mA) | 690,00 |
| Intensidad de salida máxima (mA) | 1.150,00 |
Descripción del producto
More details
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
Detalles técnicos
LED driver.
Documentos del producto
Hoja de datos
Especificaciones técnicas y datos de rendimiento
Manual de usuario
Guía de instalación y operación
