PMT64

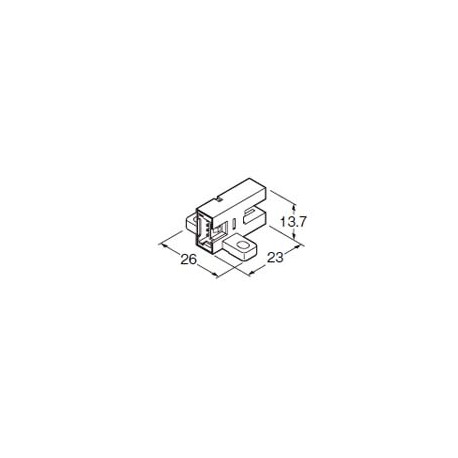

PMT64 PM-T64 PANASONIC u-shape type, 5mm, NPN, connector
$0.00USD
3073 en stock
Especificaciones clave
Artículo:Specifications
Producción:NPN open-collector transistorMaximum sink current: 50 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 0.7 V or less (at 50 mA sink current), 0.4 V or less (at 16 mA sink current)
Peso:Net weight: 3 g approx.
Material:Enclosure: PBT, Slit cover: Polycarbonate
Información del proveedor
PANASONIC
Productos: 4316
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Artículo | Specifications |
| Producción | NPN open-collector transistorMaximum sink current: 50 mAApplied voltage: 30 V DC or less (between output and 0 V)Residual voltage: 0.7 V or less (at 50 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Peso | Net weight: 3 g approx. |
| Material | Enclosure: PBT, Slit cover: Polycarbonate |
| Histéresis | 0.05 mm 0.002 in or less(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape. |
| Número de pieza | PM-T64 |
| Nombre del producto | Connector Built-in U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-64(Discontinued) |
| Repetibilidad | 0.01 mm 0.004 in or less(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape and when the inserting length of the sensing board is 5 mm 0.197 in. |
| Tiempo de respuesta | Under light received condition: 20 micros or less, Under light interrupted condition: 100 micros or less(Response frequency: 1 kHz or more) |
| Rango de detección | 5 mm 0.197 in (fixed) |
| Longitud del cableado | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note) Confirm that the sensor terminal voltage is more than 4.5 V when using an extension of over 20 m 65.617 ft. |
| Número de producto | PM-T64 |
| Tensión de alimentación | 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Humedad ambiental | 35 to 85 % RH, Storage: 5 to 95 % RH |
| Elemento emisor | Infrared LED(Peak emission wavelength: 940 nm 0.037 mil, non-modulated) |
| Resistencia a los golpes | 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions for three times each |
| Iluminancia ambiental | Fluorescent light: 1,000 lx at the light-receiving face |
| Temperatura ambiente | -25 to +55 degrees -13 to +131degrees Fahrenheit(No dew condensation or icing allowed), Storage: -30 to +80 degrees -22 to +176degrees Fahrenheit |
| Consumo actual | 15 mA or less |
| Indicador de funcionamiento | Orange LED (lights up under light received condition) |
| Resistencia a la vibración | 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
| Resistencia de aislamiento | 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Objeto de detección mínimo | 0.8 x 1.8 mm 0.031 x 0.071 in opaque object |
| Salida:Operación de salida | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Soportabilidad de tensión | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
