PV-FT-C3F-C-2,5-4-VPE250

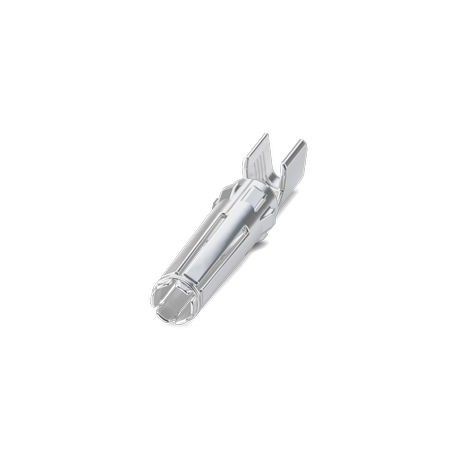

PV-FT-C3F-C-2,5-4-VPE250 1196774 PHOENIX CONTACT Crimp contact, Family of articles: SUNCLIX, number of poles..
$0.77USD
13027 en stock
Especificaciones clave
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Ancho:6.2 mm
Altura:6.2 mm
Longitud:31.6 mm
Información del proveedor
Productos: 0
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| Ancho | 6.2 mm |
| Altura | 6.2 mm |
| Longitud | 31.6 mm |
| Nota de seguridad | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Tipo de producto | Panel feed-through |
| Familia de productos | Sunclix |
| Fuerza de inserción | < 45 N ±10 N |
| Material de contacto | Cu |
| Método de conexión | Crimp |
| Resistencia de contacto | < 0.3 mΩ (Crimp to crimp) |
| Número de puestos | 1 |
| Material de la superficie de contacto | Ag |
| Corriente nominal (2,5 mm²) | 27 A |
| Corriente nominal (4,0 mm²) | 34 A |
| Cable único, sección transversal | 2.5 mm² 4 mm² |
| Ciclos de inserción/retiro | 100 |
| Temperatura ambiente (montaje) | -5 °C ... 50 °C |
| Temperatura ambiente (funcionamiento) | -40 °C ... 85 °C |
| Longitud de pelado del cable individual | 9 mm -1 mm |
Descripción del producto
Crimp Contact, Item Family: Sunclix, Number of Poles: 1, Min. Conductor Section: 2.5 mm², Max. Conductor Section: 4 mm², Rated Current: 27 A, Connection Type: Crimp, Contact Connection Type: Female
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
