RPT-75B

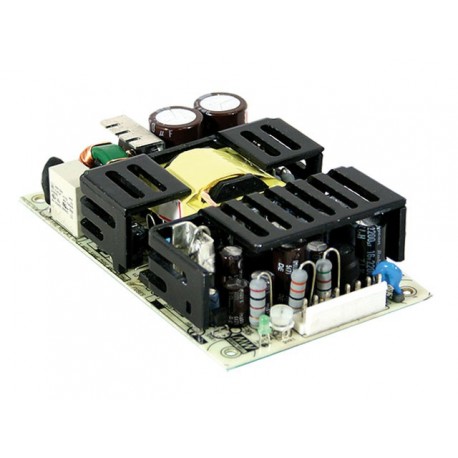

RPT-75B MEANWELL AC-DC Triple output Medical Open frame power supply, Output 5VDC / 8A +12VDC / 4A -12VDC / ..
$23.47USD
475 en stock
Especificaciones clave
Nombre:RPT-75B
Alarmas:Powerfail, Output OK
Formato:Open Format
Serie:RPT-75
Información del proveedor
MEANWELL
Productos: 6448
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Nombre | RPT-75B |
| Alarmas | Powerfail, Output OK |
| Formato | Open Format |
| Serie | RPT-75 |
| Salida 1 | -12 |
| Salida 2 | +5 |
| Salida 3 | +12 |
| Aprobaciones | CE, EN60601 3rd Edition, UL |
| Potencia (W) | 72,00 |
| Subformato | 5"x3" |
| Ancho (mm) | 76.20 |
| Altura (mm) | 31.00 |
| Entrada de CA Máx. | 264,00 |
| Entrada de CA mínima | 90,00 |
| Aplicaciones | Industrial, Medical, Telecommunications |
| Fabricante | MEAN WELL |
| Tipo de producto | Power supply AC/DC |
| Aislamiento (V) | 4.000,00 |
| Potencia máxima (W) | One hundred |
| Conector de entrada | Plug-in |
| Frecuencia de entrada | 50 Hz, 60 Hz |
| Largo/Fondo | 127.00 |
| Descripción larga | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Outputs:-12vdc:Minimum intensity of output0.1 To.Maximum output currentOneAmp.+5vdc:Minimum intensity of output0.6 To.Maximum output currentEightAmps.+12vdc:Minimum intensity of output0.2 To.Maximum output currentFourAmps.Power:72Wand100W with external fan.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:77%.Working temperature: from-20up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 31.3 years of warranty.Manufacturer: MEAN WELL.The series RPT-75 are power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Conector de salida | Plug-in |
| Tipo de entrada CA | Single-phase |
| Garantía (años) | 3,00 |
| País natal | China |
| Necesitas cargar un mínimo | Yes |
Descripción del producto
More details
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
Detalles técnicos
Medical Power supply in Open Format(Open-Frame).
Documentos del producto
Hoja de datos
Especificaciones técnicas y datos de rendimiento
Manual de usuario
Guía de instalación y operación
