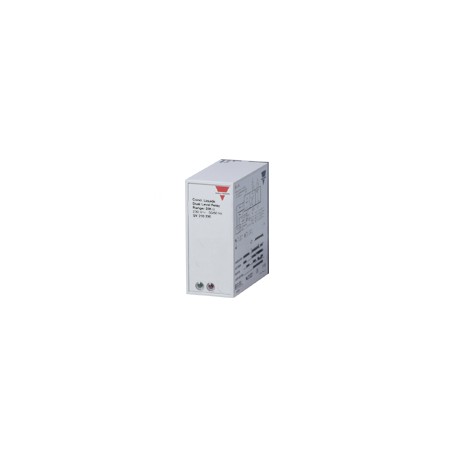

SV260724

Level SensorsAmplifier, CapacitiveTypesSV 150/250, SV 160/260• Level control for solid, fluid, or granulated substances• SV 150/250: Max./min. control of DISCHARGING• SV 160/260: Max./min. control of CHARGING• Factory-set sensitivity• For capacitive sensors VR.. and VRY..• 10 A SPDT or 8 A DPDT output relay• LED-indication: SV 150/250: Power supply and relay ON• SV 160/260: Relay ON• AC or DC power supplySV 150/250SV 160/260Product DescriptionOrdering KeySV 150 024Level control relays for capacitive sensors, types VR and VRY. The relays can con-trol one or two levels of charging (SV 160/260) or dis- charging (SV 150/250).HousingOutputPower supplyTypeSelectionPlugOutputFunctionSupply: 24 VAC Supply: 115 VACSupply: 230 VAC Supply: 24 VDCCircularSPDTDischargingSV 150 024SV 150 115SV 150 230 SV 150 724DPDTDischargingSV 250 024SV 250 115SV 250 230 SV 250 724SPDTCharging SV 160 024SV 160 115SV 160 230 SV 160 724DPDTCharging SV 260 024SV 260 115SV 260 230 SV 260 724InputSpecificationsSensitivityDepends on sensor type and materialSensor voltageMax. 24 VDCTerminal 6 is negativeSensor currentActivated Min. 15 mA, max. 20 mA Not activated Max. < 5 mASensor short-circuit currentMax. 45 mAGeneral SpecificationsIndication forOutput ONLED, redPower supplyLED, green(only SV 150/250)Supply SpecificationsPower supply AC-types Overvoltage cat. II (IEC 60664) Rated operational voltagethrough pin 2 & 10230 230 VAC ± 15%115 115 VAC ± 15%024 24 VAC ± 15% Rated insulation voltage ³ 2.0 kVAC (rms) Rated impulse withstandvoltage4 kV (1.2/50 µs) (line/neutral)Power supply DC-types Installation cat. II (IEC 60664) Rated operational voltage724 24 VDC ±15% (pin 2 pos.) Rated insulation voltage NoneRated transient protection volt. 800 V (1.2/50 µs)EnvironmentDegree of protection IP 20 B Pollution degree 3 (IEC 60664)Operating temperature -20° to +50°C (-4° to +122°F) Storage temperature-50° to +85°C (-58° to +185°F)ApprovalsUL, CSACE-marking YesSpecifications are subject to change without notice (11.06.03) 1
