ULSH201C5

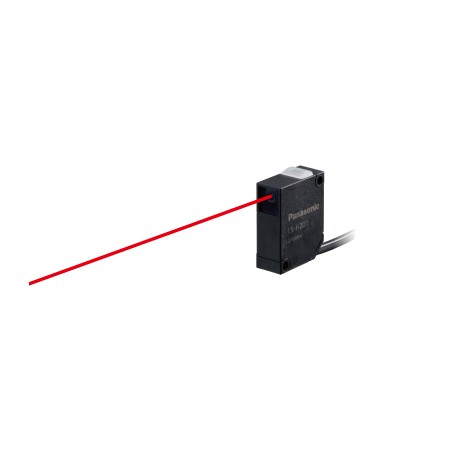

ULSH201C5 LS-H201-C5 PANASONIC Sensor head, diffuse reflective, range 300mm, cable 5m
$0.00USD
4941 en stock
Especificaciones clave
Artículo:Specifications
Cable:0.09 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.)
Detalles:Sensor heads(Coaxial reflective type)
Producto:Amplifier-separated Type Digital Laser Sensor
Información del proveedor
PANASONIC
Productos: 4316
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Artículo | Specifications |
| Cable | 0.09 mm22-core two parallel shielded cables, 2 m 6.562 ft long(Note：Cable cannot be extended.) |
| Detalles | Sensor heads(Coaxial reflective type) |
| Producto | Amplifier-separated Type Digital Laser Sensor |
| Material | Enclosure: PBTIndicator cover: PolycarbonateBeam-emitting / receiving surfaces: Glass |
| Accesorio | MS-LS-1 (Mounting bracket): 1pc. |
| Tamaño del punto | Approx. dia. 2 mm dia. 0.079 in or less (at a distance from the sensor head of 300 mm 11.811 in) |
| Protección | IP40 (IEC) |
| Número de pieza | LS-H201-C5 |
| Nombre del producto | Amplifier-separated Type Digital Laser Sensor LS-500 |
| Número de producto | LS-H201-C5 |
| Objeto de detección | Opaque, translucent, or transparent object(Note：Make sure to confirm detection with an actual sensor before use.) |
| Humedad ambiental | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Resistencia a los golpes | 98 m / s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Rango de detección: HYPR | 750mm29.528 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Rango de detección: U-LG | 600mm23.622 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Iluminancia ambiental | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Temperatura ambiente | -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit |
| Indicador de funcionamiento | Orange LED (lights up when the amplifier output is ON) |
| Resistencia a la vibración | 10 to 500 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2in X, Y, and Z direction for 2 hours each. |
| Amplificadores aplicables | LS-501(P), LS-501(P)-C2(Note：When using the thru-beam typeLS-H101□orLS-H102□, do not set the receiving light sensitivity (gctL) of the applicableLS-500series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.) |
| Elemento emisor:Tipo | Red semiconductor laser diode |
| Resistencia de aislamiento | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Cumplimiento normativo | EMC Directive, RoHS Directive |
| Rango de detección: modo STD | 300mm11.811 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Rango de detección: modo RÁPIDO | 200mm7.874 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Rango de detección: modo H-SP | 150mm5.906 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Rango de detección: modo U-LG | 450mm17.717 in(Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm3.937 × 3.937 in) as the object.)(Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m0.033 ftaway. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicableLS-500series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Soportabilidad de tensión | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Elemento emisor:Clase láser | Class 1 [IEC / EN / JIS / GB / KS / FDA](Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Elemento emisor:Salida máx. | 2mW |
| Elemento emisor:Longitud de onda de emisión máxima | 660 nm 0.026 mil |
Descripción del producto
LS500. Sensor head, diffuse reflection, range 750mm, cable 5m
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
