UPMY45P

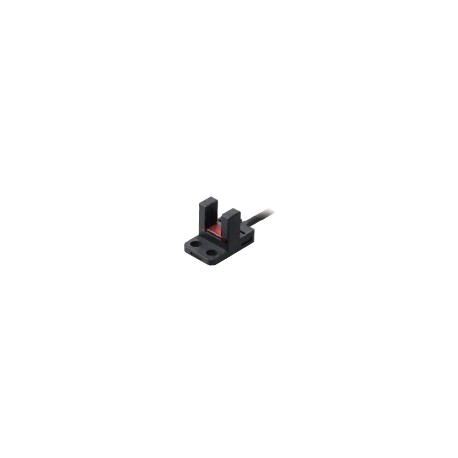

UPMY45P PM-Y45-P PANASONIC u-shape type, U-shape, 6mm, PNP, cable 1m
$0.00USD
4978 en stock
Especificaciones clave
Artículo:Specifications
Cable:0.09-mm24-core cabtyre cable, PVC, 1 m3.281 ftlong
Producción:PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Observación:Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉.
Información del proveedor
PANASONIC
Productos: 4316
Normalmente se envía dentro de 2-3 días hábiles
Calidad garantizada
Envío rápido
Soporte técnico
Especificaciones técnicas
| Parámetro | Valor |
|---|---|
| Artículo | Specifications |
| Cable | 0.09-mm24-core cabtyre cable, PVC, 1 m3.281 ftlong |
| Producción | PNP open-collector transistor・Maximum source current: 50 mA・Applied voltage: 30 V DC or less (between output and + V)・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Observación | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
| Peso | Net weight: 10 g approx.Gross weight: 15 g approx. |
| Detalles | Compact / Cable type [Y type] |
| Producto | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
| Material | Enclosure: PBTDisplay section: Polycarbonate |
| Histéresis | 0.05 mm0.002 inor less |
| Protección | IP64 (IEC) |
| Número de pieza | PM-Y45-P |
| Nombre del producto | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Cable type]PM-45 |
| Repetibilidad | 0.01 mm0.0004 inor less |
| Tiempo de respuesta | Under light received condition: 20 μs or lessUnder light interrupted condition: 80 μs or less(Maximum response frequency: 3 kHz)(Note)(Note) : Refer to the note on the specification page for the response frequency. |
| Rango de detección | 6 mm0.236 in(fixed) |
| Longitud del cableado | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.(Note 1) : If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.(Note 2) : For safety applications, do not exceed 30 m98.425 ft. |
| Número de producto | PM-Y45-P |
| Tensión de alimentación | 5 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Humedad ambiental | 5 to 85 % RH, Storage: 5 to 95 % RH |
| Elemento emisor | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) |
| Grado de contaminación | 3 |
| Resistencia a los golpes | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each |
| Iluminancia ambiental | Fluorescent light: 1,000 ℓx at the light-receiving face |
| Temperatura ambiente | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ |
| Consumo actual | 15 mA or less |
| Indicador de funcionamiento | Orange LED (lights up under light received condition) |
| Resistencia a la vibración | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each |
| Resistencia de aislamiento | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Objeto de detección mínimo | 0.8 × 1.2 mm0.031 × 0.047 inopaque object |
| Salida:Operación de salida | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Soportabilidad de tensión | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Salida: Protección contra cortocircuitos | Incorporated |
| Normativas y certificaciones aplicables | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL certification(Note) : Conformed from December 2021 production. |
Descripción del producto
Miniature and compact horseshoe photoelectric sensor, Y type, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) PNP, 1m cable
Características clave
- Calidad de grado industrial
- Cumple con RoHS
- Certificado CE
- Garantía de 1 año
